At Code Construct, we have been working on a suite of open source Management Component Transport Protocol (MCTP) infrastructure in Rust, to support our clients' platform bringup projects. We have since published that code to our github repositories - so have provided a brief tour of those new repositories here.

Overall, the source code below implements a set of tooling for implementing MCTP-based communication on Linux (where we have core support for MCTP in the operating system) and on embedded systems (where we do not). For the latter cases, we have a stand-alone MCTP stack implementation, portable enough for general microcontroller usage.

All of the code referenced below is now available in our github repositories, and is under active development. Read on for details!

In case you're not familiar with MCTP, we have an introduction post for some background.

Core MCTP components: the mctp-rs workspace🔗

The mctp-rs repository is a Rust workspace, with a set of crates for building MCTP applications - either as Linux applications using the kernel MCTP socket support, or embedded Rust environments, where we supply the entire MCTP stack.

There are several crates in the workspace, but they're of roughly three types:

The mctp crate provides the central part - a common set of Rust traits that form an interface between MCTP applications - as requesters or responders (or both!) - and the underlying MCTP implementation.

As an overall structure:

Layout of mctp-rs crate components

So, implementations of these core mctp traits provide an MCTP transport; consumers of these traits are MCTP applications. The other crates in the workspace provide either transport implementations, or upper-layer protocol support.

The traits are available in both asynchronous and blocking flavours, to suit whichever programming model works best for a platform.

The mctp-linux (docs here) crate provides implementations of the above mctp traits for Linux systems, using the AF_MCTP sockets as an MCTP transport.

Of course, it's entirely possible to write Linux applications directly to the AF_MCTP socket interface. However, using mctp-linux, we can write applications (or upper-layer protocol libraries) that also work on embedded MCTP environments, with minimal changes.

The mctp-estack (docs) crate provides implementations of the mctp traits as a self-contained MCTP stack, suitable for embedded environments (ie., without std or alloc).

This embedded stack is fairly comprehensive, supporting message fragmentation and reassembly, routing across multiple hardware interfaces, multiple listener applications and MCTP control protocol support. It should suit well for almost all MCTP-endpoint-device scenarios.

A set of upper-layer protocol libraries and tools are provided in the pldm (docs), pldm-fw (docs), and pldm-fw-cli (docs) crates. These use the mctp trait interfaces to implement base PLDM support, and a PLDM for Firmware Update ("PLDM type 5") implementation - both as Firmware Device (FD) and User Agent (UA)

Base NVMe-MI device implementation: nvme-mi-dev🔗

A common use for MCTP is to interact with NVM Express (NVMe) storage devices, for status monitoring, lifetime management, and provisioning operations. This is possible over the NVMe Management Interface "NVMe-MI" protocol, using MCTP as a transport mechanism.

We have previously implemented a layer of tooling to support NVMe-MI requesters, as part of the Linux libnvme project.

To complement this, we have also just released code that implements the device side of NVMe-MI, entirely in Rust: the nvme-mi-dev crate. This implements basic NVMe-MI discovery and management functions, with more protocol coverage in progress.

Prototype MCTP embedded firmware: usbnvme🔗

Using the above MCTP crates, plus the embassy embedded Rust framework, we have implemented a hardware MCTP endpoint in firmware, suitable for 32-bit microcontroller environment. For our reference design, we have this running on a STM32H7S3L8 Nucleo development board:

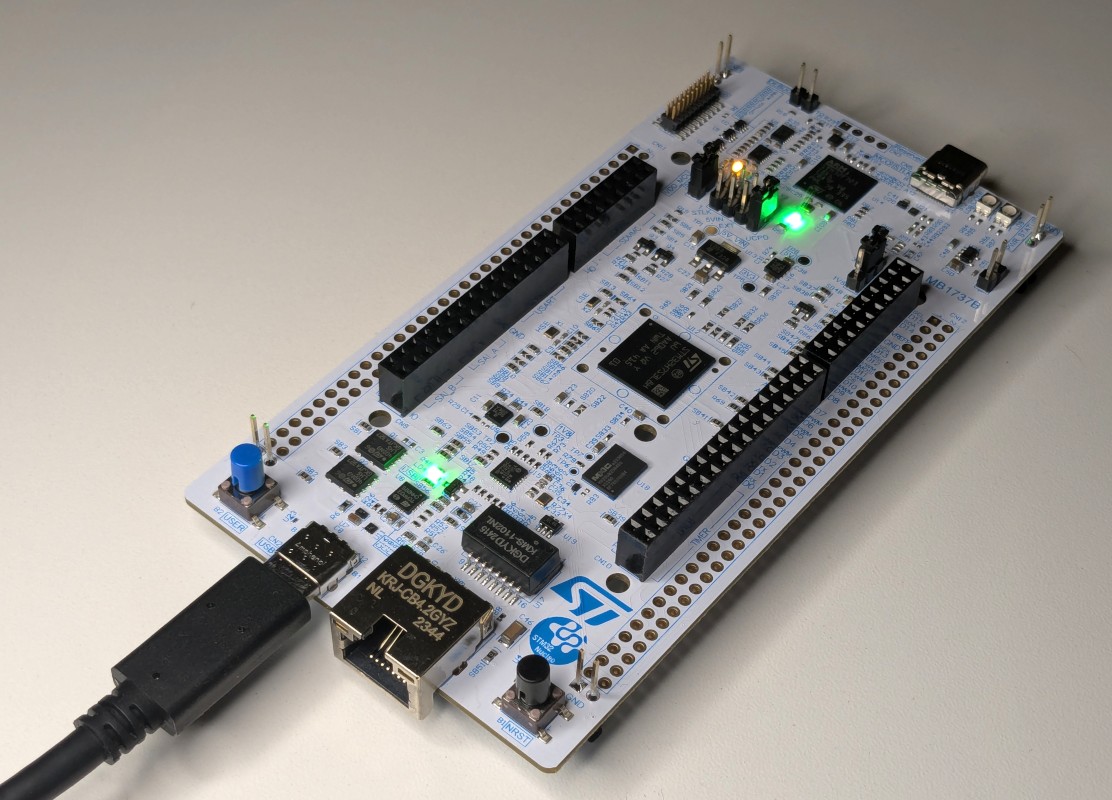

STM32H7 development board
NVMe-MI over USB endpoint: usbnvme firmware running on a ST Nucleo board

As a primary use-case, this device implements an NVMe-MI responder on top of the embedded MCTP stack. In effect, the device above appears as a out-of-band-manageable, enterprise NVMe-MI device - just without the actual NVMe storage capability.

This is able to integrate with a typical MCTP-capable platform, such as a Baseboard Management Controller (BMC), connecting via a MCTP-over-USB channel. This allows rapid development of the BMC's own software stack, for communication with various target device types.

BMC / usbnvme system diagram
Connections between usbnvme and a BMC system

This setup allows us to prototype MCTP endpoints easily, and test against actual server hardware - all before production MCTP-over-USB devices are available. Hardware costs are minimal - the Nucleo board is available around US$36 at the time of writing.

The firmware structure is mostly modular - while we have implemented a NVMe-MI endpoint here, there is certainly flexibility to replace this with other upper-layer applications that communicate over MCTP. As long as they use the mctp crate traits, porting to the embedded environment should be straightforward. This is the intention of those traits after all!

Check out the usbnvme repository on github for all sources.

MCTP stack for userspace simulations: mctp-dev🔗

Similar to usbnvme, the mctp-dev crate implements a MCTP-over-USB stack, and a NVMe-MI endpoint, but is runnable as a Linux userspace application. This application can connect to a qemu virtual machine, for virtual MCTP prototyping.

qemu / mctp-dev system diagram
Connections between usbnvme and a BMC system

Standard qemu can support connections to virtual USB endpoints through the usb-redir device:

$ qemu-system-arm -M ast2600-evb \
    -chardev pty,id=usbredir0 \
    -device usb-redir,chardev=usbredir0 \
    [...]
char device redirected to /dev/pts/4 (label usbredir)

... which we can connect to our mctp-dev process:

$ mctp-dev usb /dev/pts/4
08:18:18 [INFO] Created MCTP USB transport on /dev/pts/4
08:18:18 [INFO] MCTP Control Protocol server listening
08:18:18 [INFO] NVMe-MI endpoint listening

This allows us to rapidly develop and test MCTP applications in the qemu environment - so no hardware is required. Iterating on changes to the mctp-dev emulation implementation is just a matter of re-building and re-running the one process.

For the NVMe-MI implementation, mctp-dev makes heavy use of our new nvme-mi-dev crate, which provides the NVMe subsystem models, plus the management interface command set. Of course, the aim for mctp-dev is to provide a flexible platform for MCTP experimentation, so the sources are intended to be easily modifiable to modify to suit new applications.

mctp-dev also supports MCTP communication over serial transports, which can connect to either qemu, or real UART hardware.

... all published on github🔗

All of the above crates are published under OSI-approved open source licenses, on our Code Construct github organisation. For handy reference:

Crates that are suitable for integration into other codebases have been published to crates.io as well, and have documents on docs.rs:

Most of these are under ongoing development; feel free to follow along, or get in contact if you're adopting these for your own platforms.
